Los terrenos afectados por el PAU y que constituyen parte de los polígonos catastrales número 20, 21 y 24 se hallan al norte del núcleo urbano de Nuevo Borox y al sur del casco urbano en dirección al P.K.36 de la carretera CM-4001 de Toledo a La cuesta la Vega.

El polígono esta definido por los siguientes linderos:

– Al Norte: con varias parcelas de los polígonos catastrales 20 y 24 del término de Borox
– Al sur: con varias parcelas de los polígonos catastrales 20 y 21

La superficie total de la actuación según reciente medición topográfica del terreno es de 848.922,55 m2.

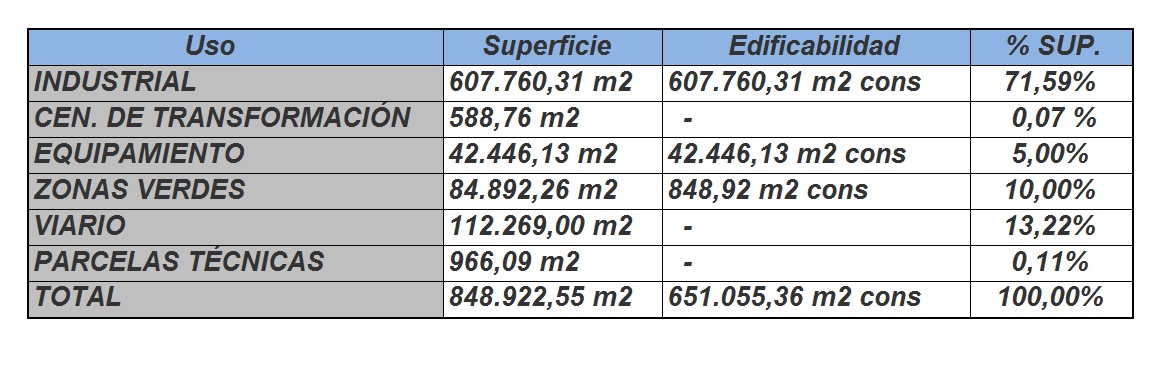

RESUMEN DE USOS Y SUPERFICIES GENERALES

tabla-portfolio-jmg

The lands affected by the PAU which form part of the cadastral polygons number 20, 21 and 24 are located north of the urban center of Nuevo Borox and south of the urban area in the direction of P.K.36 of the CM-4001 road from Toledo to La cuesta la Vega.

The area is denined by next front lines:

– In the north: with some plots of the cadastral polygons number 20 and 24 of Borox.
– In the south: with some plots of the cadastral polygons number 20 and 21.

The total area of the action according to recent topographic measurement of the land is 848,922.55 m2.

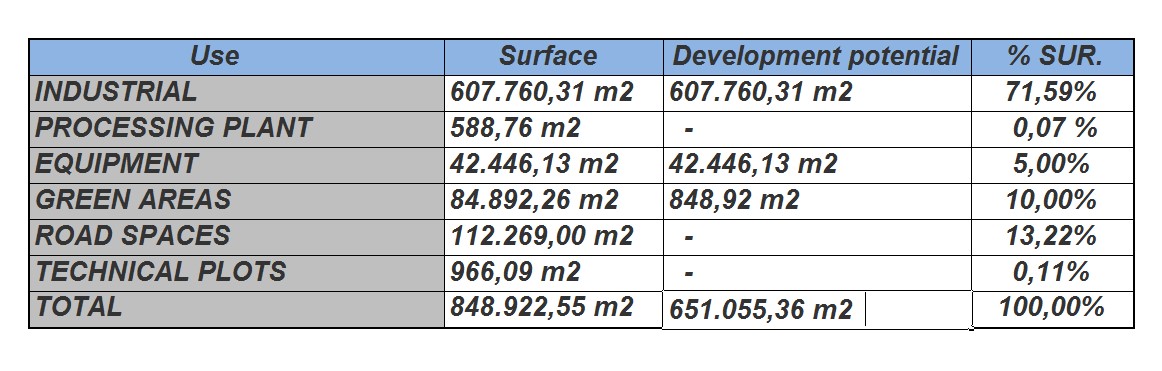

SUMMARY OF USES AND GENERAL SURFACES

tabla-portfolio-jmg-ingles
